fusedTree is a prediction model that integrates a set of low‑dimensional, established clinical variables with high‑dimensional, noisy omics variables. It fits (generalized) linear regression models in each leaf node of a tree, enabling both interpretability and flexibility in handling complex data structures.
Note: Tree construction must be done externally
(e.g., with the rpart
or partykit
packages in R).
For full methodological details, see the preprint.
# CRAN
install.packages("fusedTree")
# Development version from GitHub
remotes::install_github("JeroenGoedhart/fusedTree")We illustrate the model for a continuous response. The simulated data has a nonlinear relationship with clinical variables and a linear relationship with omics variables.
library(fusedTree)
if (!requireNamespace("rpart", quietly = TRUE)) install.packages("rpart")
if (!requireNamespace("rpart.plot", quietly = TRUE)) install.packages("rpart.plot")
library(rpart); library(rpart.plot)set.seed(10)
p <- 5 # Number of omics variables
p_Clin <- 5 # Number of clinical variables
N <- 100 # Sample size
# Nonlinear function of clinical variables
g <- function(z) {
15 * sin(pi * z[,1] * z[,2]) +
10 * (z[,3] - 0.5)^2 +
2 * exp(z[,4]) +
2 * z[,5]
}
# Clinical and omics covariates
Z <- as.data.frame(matrix(runif(N * p_Clin), nrow = N))
X <- matrix(rnorm(N * p), nrow = N)
betas <- c(1, -1, 3, 2, -2)
# Response: nonlinear clinical + linear omics + noise
Y <- as.vector(g(Z) + X %*% betas + rnorm(N))Thus, the response is generated by a nonlinear clinical part and a separate linear omics part. Therefore, the omics variables do not vary with the clinical variables. The omics regressions in the different nodes of the tree should therefore benefit from strong fusion.
dat <- cbind.data.frame(Y, Z)
rp <- rpart(
Y ~ ., data = dat,
control = rpart.control(xval = 5, minbucket = 10),
model = TRUE
)
# poste-prune the tree
cp <- rp$cptable[which.min(rp$cptable[, "xerror"]), "CP"]
Treefit <- prune(rp, cp = cp)

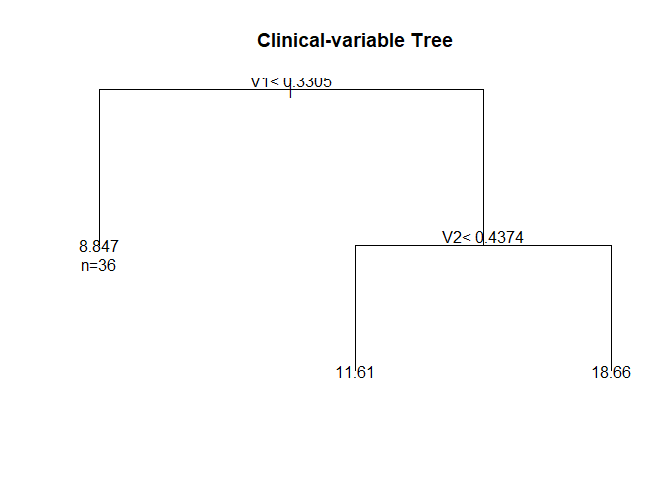

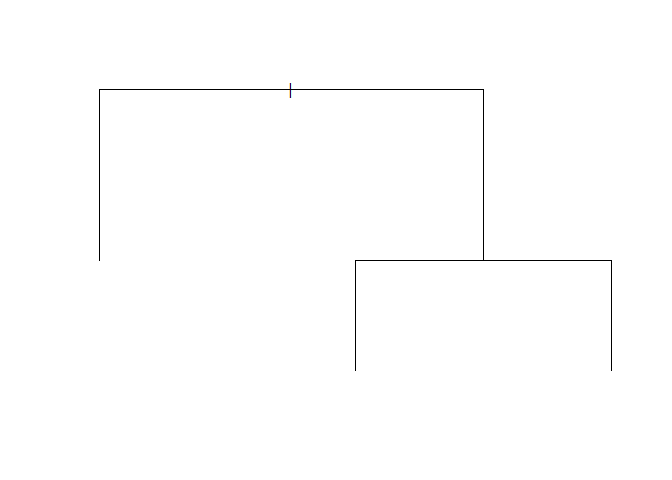

rpart.plot(Treefit,
type=5,
extra=1,
box.palette="Pu",
branch.lty=8,
shadow.col=0,
nn=TRUE,
cex = 0.6)
## the software also accepts tree fits from the `partykit` package:
if (!requireNamespace("partykit", quietly = TRUE)) install.packages("partykit")
if (!requireNamespace("coin", quietly = TRUE)) install.packages("coin") # also needs to be installed
library(partykit)
#> Loading required package: grid
#> Loading required package: libcoin
#> Loading required package: mvtnorm
Treefit1 <- as.party(Treefit)Before fitting the model, it’s useful to understand how fusedTree internally represents the data to enable leaf-specific regression. Each leaf node of the tree gets its own (generalized) linear regression model. To support this, two design matrices are constructed:
Clinical design matrix
(Clinical):
A binary intercept indicator matrix of size
N × (# of leaf nodes). Each column corresponds to a leaf
node, with entries equal to 1 if an observation falls into that node and
0 otherwise.
Omics design matrix (Omics):
A matrix of size N × (p × # of leaf nodes) where
p is the number of omics variables. For each leaf node, the
corresponding block of columns contains the omics values only
for the observations in that node; entries are 0 elsewhere.
When p > N (high-dimensional data), the returned matrix
is build using the [Matrix] package for memory efficiency.
The matrix is therefore of class dgCMatrix.
These matrices are created automatically during model fitting, but
you can inspect them yourself using the Dat_Tree()
function:
Dat_fusedTree <- Dat_Tree(Tree = Treefit, X = X, Z = Z, LinVars = FALSE)
# Clinical design matrix: indicator for node membership
head(Dat_fusedTree$Clinical)
#> N2 N6 N7
#> 1 0 1 0
#> 2 1 0 0
#> 3 0 1 0
#> 4 0 1 0
#> 5 1 0 0
#> 6 1 0 0
# Omics design matrix: omics data distributed across nodes
head(Dat_fusedTree$Omics)
#> x1_N2 x1_N6 x1_N7 x2_N2 x2_N6 x2_N7 x3_N2
#> [1,] 0.0000000 1.0778926 0 0.0000000 -0.886788 0 0.0000000
#> [2,] 0.9317812 0.0000000 0 1.2711460 0.000000 0 -1.5233846
#> [3,] 0.0000000 -1.4607939 0 0.0000000 -1.605085 0 0.0000000
#> [4,] 0.0000000 -0.9060756 0 0.0000000 1.122273 0 0.0000000
#> [5,] -0.6803478 0.0000000 0 2.1584386 0.000000 0 -0.2874329
#> [6,] 1.0631660 0.0000000 0 0.4282466 0.000000 0 -0.4353083
#> x3_N6 x3_N7 x4_N2 x4_N6 x4_N7 x5_N2 x5_N6 x5_N7
#> [1,] 1.1639675 0 0.00000000 -0.3121347 0 0.0000000 -0.8658204 0
#> [2,] 0.0000000 0 -0.69877530 0.0000000 0 0.8254939 0.0000000 0
#> [3,] -2.5183351 0 0.00000000 -2.6438498 0 0.0000000 -0.8001323 0
#> [4,] -0.7075292 0 0.00000000 0.8250224 0 0.0000000 0.9758301 0
#> [5,] 0.0000000 0 0.30692631 0.0000000 0 2.7000755 0.0000000 0
#> [6,] 0.0000000 0 -0.05803946 0.0000000 0 -0.1353896 0.0000000 0Note: You do not need to create these matrices
manually — this step is handled internally by the
fusedTree() function. However, visualizing them can help
you better understand how the model applies fusion across leaf-specific
regressions.
Create balanced cross‑validation folds across the leaf nodes. Folds are balanced w.r.t the proportion of observations in the leaf nodes, and w.r.t the outcome for binary and survival data.
set.seed(11)
folds <- CVfoldsTree(Y = Y, Tree = Treefit, Z = Z, model = "linear")
optPenalties <- PenOpt(
Tree = Treefit,
X = X,
Y = Y,
Z = Z,
model = "linear",
lambdaInit = 10,
alphaInit = 10,
loss = "loglik",
LinVars = FALSE,
folds = folds,
multistart = FALSE # TRUE yields more stable but slower results
)
#> Tuning fusedTree with fusion penalty
optPenalties
#> lambda alpha
#> 1.490862e-13 3.843843e+12As seen, the fusion penalty alpha is tuned to a (very) large value as expected. The standard ridge penalty is (very) small because of the low-dimensional simulation setting
fit <- fusedTree(
Tree = Treefit,
X = X,
Y = Y,
Z = Z,
LinVars = FALSE,
model = "linear",
lambda = optPenalties[1],
alpha = optPenalties[2]
)
#> Fit fusedTree with fusion penalty
# View results
fit$Effects # Omics effects per leaf
#> N2 N6 N7 x1_N2 x1_N6 x1_N7 x2_N2
#> 9.1434885 11.5976204 18.2735435 0.6656824 0.6656824 0.6656824 -0.9519646
#> x2_N6 x2_N7 x3_N2 x3_N6 x3_N7 x4_N2 x4_N6
#> -0.9519646 -0.9519646 3.1750430 3.1750430 3.1750430 1.7737451 1.7737451
#> x4_N7 x5_N2 x5_N6 x5_N7
#> 1.7737451 -1.9979752 -1.9979752 -1.9979752

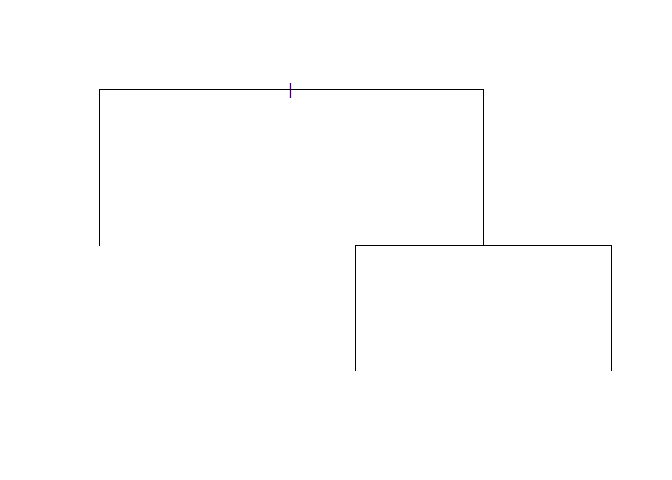

rpart.plot(fit$Tree,
type=5,
extra=1,
box.palette="Pu",
branch.lty=8,
shadow.col=0,
nn=TRUE,
cex = 0.6) # Underlying tree structure
fit$Pars # Model parameters
#> Model LinVar Alpha Lambda
#> alpha linear FALSE 3.843843e+12 1.490862e-13Because of the strong fusion penalty, the estimated omics effects across leaf nodes are (nearly) identical. However, some bias remains in the omics effect estimates due to the tree’s limited ability to capture the nonlinear structure in the clinical variables. Since the leaf-node-specific intercepts (representing the clinical contribution) and the omics effects are estimated jointly, bias in the intercepts propagates into the omics coefficients.
# Simulate test set
N_test <- 50
Z_test <- as.data.frame(matrix(runif(N_test * p_Clin), nrow = N_test))
X_test <- matrix(rnorm(N_test * p), nrow = N_test)
Y_test <- as.vector(g(Z_test) + X_test %*% betas + rnorm(N_test))
# Generate predictions
Preds <- predict(fit, newX = X_test, newZ = Z_test)
PMSE <- mean((Y_test - Preds$Ypred)^2)
PMSE
#> [1] 15.03962Below is a short example showing how to use fusedTree
for binary outcomes. We simulate a binary response using a logistic
model, with omics effects shared across leaf nodes.
# Load package
library(fusedTree)
if (!requireNamespace("rpart", quietly = TRUE)) install.packages("rpart")
# Settings
set.seed(13)
N <- 300
p <- 5
p_Clin <- 5
# Simulate data
Z <- as.data.frame(matrix(runif(N * p_Clin), nrow = N)) # clinical variables
X <- matrix(rnorm(N * p), nrow = N) # omics variables
betas <- c(1, -1, 3, 2, -2)
eta <- 15 * sin(pi * Z[,1] * Z[,2]) - 10 * (Z[,3] - 0.5)^2 -
2 * exp(Z[,4]) - 2 * Z[,5] + X %*% betas
prob <- 1 / (1 + exp(-eta))
Y <- rbinom(N, size = 1, prob = prob)
# Fit tree using only clinical variables
dat <- data.frame(Y = Y, Z)
rp <- rpart::rpart(Y ~ ., data = dat,
control = rpart::rpart.control(xval = 10, minbucket = 10),
method = "class", model = TRUE)
cp <- rp$cptable[,1][which.min(rp$cptable[,4])]
Treefit <- rpart::prune(rp, cp = cp)
rpart.plot(Treefit,
type=5,
extra=1,
box.palette="Pu",
branch.lty=8,
shadow.col=0,
nn=TRUE,
cex = 0.6)
We then tune the penalties and fit the fusedTree model:
# Create folds
set.seed(30)
folds <- CVfoldsTree(Y = Y, Tree = Treefit, Z = Z,
model = "logistic", nrepeat = 1)
# Tune hyperparameters
optPenalties <- PenOpt(Tree = Treefit, X = X, Y = Y, Z = Z,
model = "logistic",
lambdaInit = 10, alphaInit = 10,
loss = "loglik",
LinVars = FALSE,
folds = folds,
multistart = TRUE) # slower
#> Tuning fusedTree with fusion penalty
optPenalties
#> lambda alpha
#> 0.2211904 141.7153124
# Fit fusedTree
fit_bin <- fusedTree(Tree = Treefit, X = X, Y = Y, Z = Z,
LinVars = FALSE, model = "logistic",
lambda = optPenalties[1],
alpha = optPenalties[2],
verbose = TRUE) # prints progress of IRLS algorithm
#> Fit fusedTree with fusion penalty
#> Iteration 1 log likelihood equals: -101.096
#> Iteration 2 log likelihood equals: -85.313
#> Iteration 3 log likelihood equals: -81.537
#> Iteration 4 log likelihood equals: -81.180
#> Iteration 5 log likelihood equals: -81.176
#> Iteration 6 log likelihood equals: -81.176
#> Iteration 7 log likelihood equals: -81.176
#> IRLS converged at iteration 7
fit_bin$Effects
#> N2 N6 N7 x1_N2 x1_N6 x1_N7 x2_N2
#> -1.5850973 -2.1764195 3.4338211 0.6738147 0.6737848 0.6949362 -0.3938863
#> x2_N6 x2_N7 x3_N2 x3_N6 x3_N7 x4_N2 x4_N6
#> -0.3700743 -0.3992398 1.2956706 1.2868135 1.2815384 1.2211976 1.2232870
#> x4_N7 x5_N2 x5_N6 x5_N7
#> 1.2347340 -1.2410471 -1.2507165 -1.2090639Finally, we simulate test data and evaluate the classification performance:
# Simulate test data
N_test <- 50
Z_test <- as.data.frame(matrix(runif(N_test * p_Clin), nrow = N_test))
X_test <- matrix(rnorm(N_test * p), nrow = N_test)
eta_test <- 15 * sin(pi * Z_test[,1] * Z_test[,2]) - 10 * (Z_test[,3] - 0.5)^2 -
2 * exp(Z_test[,4]) - 2 * Z_test[,5] + X_test %*% betas
prob_test <- 1 / (1 + exp(-eta_test))
Y_test <- rbinom(N_test, size = 1, prob = prob_test)
# Predict
Preds <- predict(fit_bin, newX = X_test, newZ = Z_test)
# AUC
if (!requireNamespace("pROC", quietly = TRUE)) install.packages("pROC")
library(pROC)
#> Type 'citation("pROC")' for a citation.
#>
#> Attaching package: 'pROC'
#> The following objects are masked from 'package:stats':
#>
#> cov, smooth, var
auc_result <- pROC::auc(Y_test, Preds$Probs)
#> Setting levels: control = 0, case = 1
#> Setting direction: controls < cases
auc_result
#> Area under the curve: 0.9328We demonstrate how to apply fusedTree to time-to-event
data using a Cox model. The tree is constructed using the partykit
package
library(fusedTree)
library(partykit)
if (!requireNamespace("survival", quietly = TRUE)) install.packages("survival")
library(survival)
# Simulation settings
set.seed(14)
N <- 300
p <- 5
p_Clin <- 5
betas <- c(1, -1, 3, 2, -2)
# Covariates
Z <- as.data.frame(matrix(runif(N * p_Clin), nrow = N)) # clinical
X <- matrix(rnorm(N * p), nrow = N) # omics
# True hazard via linear predictor
linpred <- 1 * (Z[,1] - 0.5)^2 +
3 * sin(Z[,1] * Z[,2]) +
2 * Z[,3] +
X %*% betas
hazard <- exp(linpred)
# Simulate survival times using exponential distribution
time <- rexp(N, rate = hazard)
censoring <- rexp(N, rate = 0.1)
status <- as.numeric(time <= censoring)
time <- pmin(time, censoring)
# Create survival object
Y_surv <- Surv(time, status)
# Fit tree on clinical variables using partykit
dat <- data.frame(time = time, status = status, Z)
set.seed(4)
Treefit <- ctree(Surv(time, status) ~ ., data = dat)

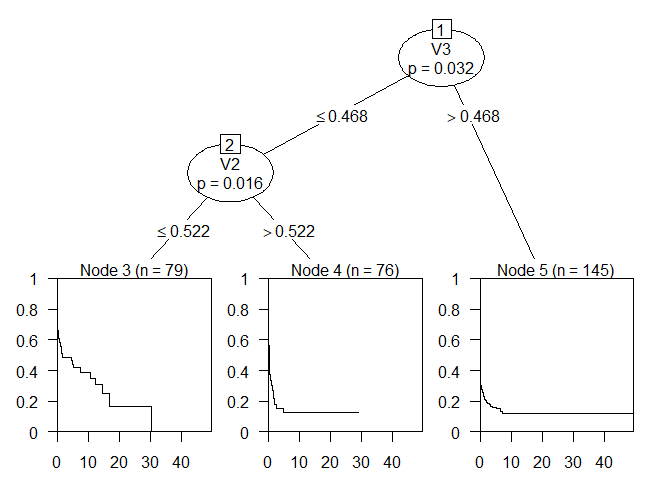

plot(Treefit)
The tree splits on the variables 2 and 3 and has 3 leaf nodes.
# Cross-validation folds
set.seed(15)
folds <- CVfoldsTree(Y = Y_surv, Tree = Treefit, Z = Z,
model = "cox", nrepeat = 1)
# Tune penalties
optPenalties <- PenOpt(Tree = Treefit, X = X, Y = Y_surv, Z = Z,
model = "cox", lambdaInit = 10, alphaInit = 10,
loss = "loglik", LinVars = TRUE,
folds = folds, multistart = FALSE)
#> Tuning fusedTree with fusion penalty
optPenalties
#> lambda alpha
#> 0.2230932 2845.6862257Note that we now included continuous variables linearly in the model (see clinical design matrix). We only do so for continuous variables and not for ordinal/categorical variables. The reason is that trees can have difficulty in finding linear effects.
# Fit fusedTree
fit_surv <- fusedTree(Tree = Treefit, X = X, Y = Y_surv, Z = Z,
LinVars = TRUE, model = "cox",
lambda = optPenalties[1],
alpha = optPenalties[2],
verbose = FALSE, maxIter = 100)
#> Fit fusedTree with fusion penalty
# effect size estimates
fit_surv$Effects
#> N3 N4 N5 V1 V2 V3
#> -1.71655000 -1.25401359 -1.33805777 1.93671122 0.94286785 1.49490466
#> V4 V5 x1_N3 x1_N4 x1_N5 x2_N3
#> 0.09727774 0.02108388 0.89034992 0.88613462 0.89072431 -1.03628669
#> x2_N4 x2_N5 x3_N3 x3_N4 x3_N5 x4_N3
#> -1.03459334 -1.03548468 2.87728535 2.87089858 2.87371693 1.88795916
#> x4_N4 x4_N5 x5_N3 x5_N4 x5_N5
#> 1.88787855 1.88628444 -2.00072538 -2.00353651 -1.99967049
# Breslow estimates of baseline (cumulative) hazard
Breslow <- fit_surv$BreslowThe fit now also contains the Breslow estimates of the baseline hazard and cumulative baseline hazard.
Next, we compute the out-of-sample using the standard concordance index (C-index)
# Simulate test data
N_test <- 100
Z_test <- as.data.frame(matrix(runif(N_test * p_Clin), nrow = N_test))
X_test <- matrix(rnorm(N_test * p), nrow = N_test)
linpred_test <- 1 * (Z_test[,1] - 0.5) ^ 2 +
3 * sin(Z_test[,1] * Z_test[,2]) +
2 * Z_test[,3] +
X_test %*% betas
hazard_test <- exp(linpred_test)
time_test <- rexp(N_test, rate = hazard_test)
censor_test <- rexp(N_test, rate = 0.1)
status_test <- as.numeric(time_test <= censor_test)
time_test <- pmin(time_test, censor_test)
Y_test <- Surv(time_test, status_test)
# Predict
# We provide Y_test as well to compute the survival probabilities for the
# time-points of the test response.
Preds <- predict(fit_surv, newX = X_test, newY = Y_test, newZ = Z_test)
# The prediction now contain the linear predictor
LinPred <- Preds$LinPred$LinPred
# and the estimated survival probabilities for each subject (rows) per unique
# time interval of the test set (columns).
Survival <- Preds$Survival
# We then compute the C-index by:
LP <- -LinPred # required for concordance
survival::concordance(Y_test ~ LP)$concordance
#> [1] 0.9151928
# and the time-dependent AUC by:
if (!requireNamespace("survivalROC", quietly = TRUE)) install.packages("survivalROC")
library(survivalROC)
survivalROC::survivalROC.C(Stime = Y_test[,1], status = Y_test[,2],
marker = LinPred, predict.time = median(Y_test[,1]))$AUC
#> [1] 0.971439fusedTree provides:
See the paper for applications to survival outcomes, and further methodological details.
