saeHB.TF.beta

saeHB.TF.beta provides several functions for area and subarea level of small area estimation under Twofold Subarea Level Model using hierarchical Bayesian (HB) method with Beta distribution for variables of interest. Some dataset simulated by a data generation are also provided. The ‘rstan’ package is employed to obtain parameter estimates using STAN.

Function

Installation

You can install the development version of saeHB.TF.beta from GitHub with:

# install.packages("devtools")
devtools::install.github("Nasyazahira/saeHB.TF.beta")

Example

Here is a basic example of using the betaTF function to make estimates based on sample data in this package

Load Package and Data

library(saeHB.TF.beta)

#Load Dataset
data(dataBeta) #for dataset with nonsampled subarea use dataBetaNS

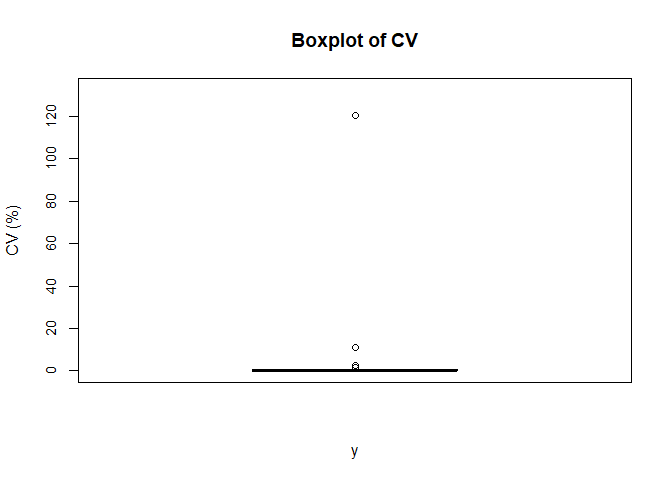

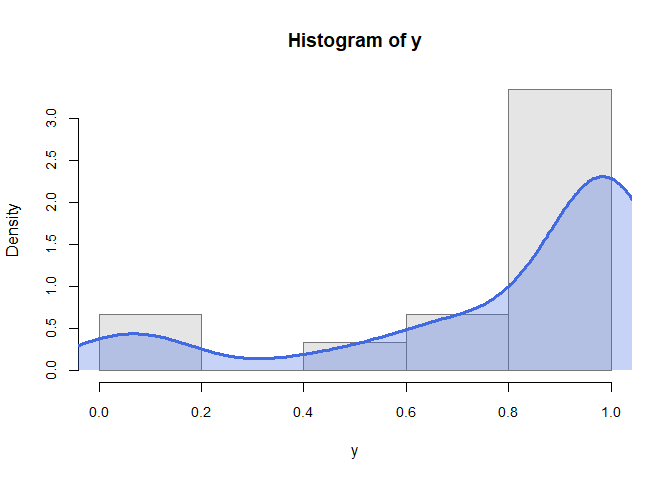

Exploration

dataBeta$CV <- sqrt(dataBeta$vardir)/dataBeta$y
explore(y~X1+X2, CV = "CV", data = dataBeta, normality = TRUE)
#>                   y         X1         X2
#> Min.    0.002826007 0.04205953 0.02461368
#> 1st Qu. 0.677417203 0.34818477 0.20900053
#> Median  0.986658040 0.58338771 0.39409355
#> Mean    0.786269096 0.57240016 0.43864087
#> 3rd Qu. 0.999116512 0.85933934 0.73765722
#> Max.    1.000000000 0.99426978 0.96302423
#> NA      0.000000000 0.00000000 0.00000000
#>
#> Normality test for y :
#> Decision: Data do NOT follow normal distribution, with p.value = 0 < 0.05

Modelling

#Fitting model
fit <- betaTF(y~X1+X2, area="codearea", weight="w", data=dataBeta, iter.update = 5, iter.mcmc = 10000)

Extract Result for Area

Area mean estimation

fit$Est_area

Area random effect

fit$area_randeff

Calculate Area Relative Standard Error (RSE) or CV

RSE_area <- (fit$Est_area$SD)/(fit$Est_area$Mean)*100
summary(RSE_area)

Extract Result for Subarea

Subarea mean estimation

fit$Est_sub

Subarea random effect

fit$sub_randeff

Calculate Subarea Relative Standard Error (RSE) or CV

RSE_sub <- (fit$Est_sub$SD)/(fit$Est_sub$Mean)*100
summary(RSE_sub)

Extract Coefficient Estimation \(\beta\)

fit$coefficient

Extract Area Random Effect Variance \(\sigma_u^2\) and Subarea Random Effect Variance \(\sigma_v^2\)

fit$refVar

Visualize the Result

library(ggplot2)

Save the output of Subarea estimation and the Direct Estimation (y)

df <- data.frame(
  area = seq_along(fit$Est_sub$Mean),
  direct = dataBeta$y,
  mean_estimate = fit$Est_sub$Mean
)

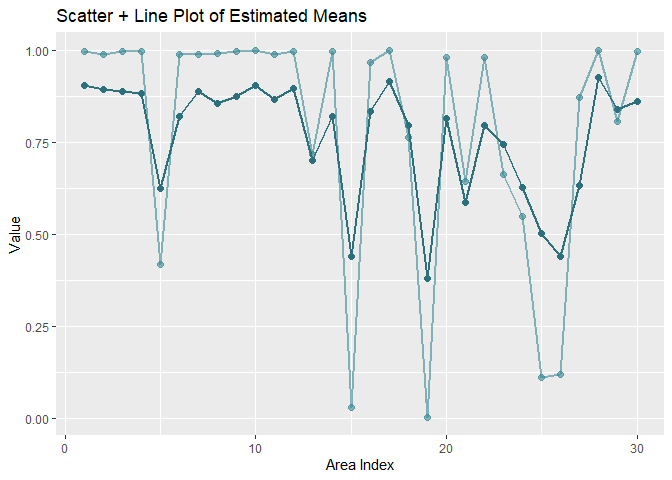

Area Mean Estimation

ggplot(df, aes(x = area)) +
  geom_point(aes(y = direct), size = 2, colour = "#388894", alpha = 0.6) +   # scatter points
  geom_point(aes(y = mean_estimate), size = 2, colour = "#2b707a") +   # scatter points
  geom_line(aes(y = direct), linewidth = 1, colour = "#388894", alpha = 0.6) +  # line connecting points
  geom_line(aes(y = mean_estimate), linewidth = 1, colour = "#2b707a") +  # line connecting points
  labs(
    title = "Scatter + Line Plot of Estimated Means",
    x = "Area Index",
    y = "Value"
  )

ggplot(df, aes(x = , direct, y = mean_estimate)) +
  geom_point( size = 2, colour = "#2b707a") +
   geom_abline(intercept = 0, slope = 1, color = "gray40", linetype = "dashed") +
  geom_smooth(method = "lm", color = "#2b707a", se = FALSE) +
  ylim(0, 1) +
  labs(

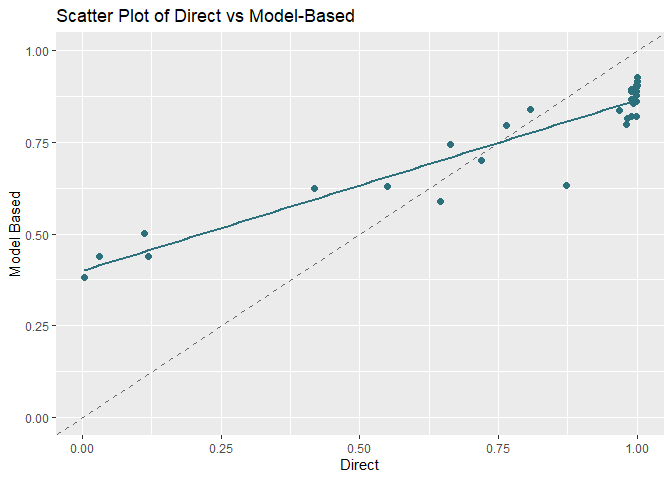

    title = "Scatter Plot of Direct vs Model-Based",
    x = "Direct",
    y = "Model Based"
  )

Combine the CV of direct estimation and CV from output

df_cv <- data.frame(
  direct = sqrt(dataBeta$vardir)/dataBeta$y*100,
  cv_estimate = RSE_sub
)
df_cv <- df_cv[order(df_cv$direct), ]
df_cv$area <- seq_along(dataBeta$y)

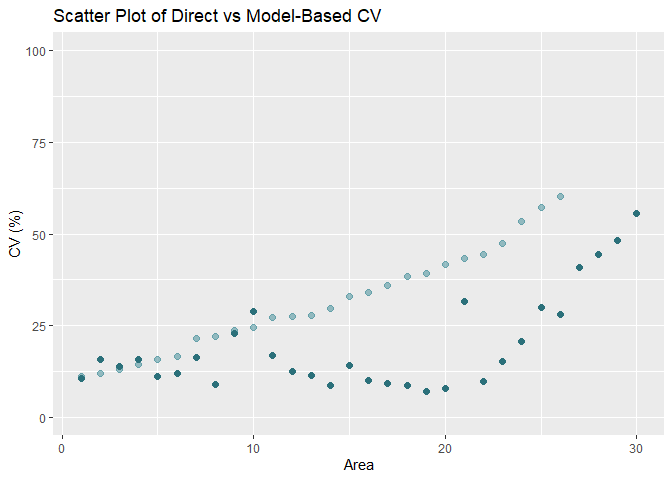

Relative Standard Error of Subarea Mean Estimation

ggplot(df_cv, aes(x = area)) +
  geom_point(aes(y = direct), size = 2, colour = "#388894", alpha = 0.5) +
  geom_point(aes(y = cv_estimate), size = 2, colour = "#2b707a") +
  ylim(0, 100) +
  labs(
    title = "Scatter Plot of Direct vs Model-Based CV",
    x = "Area",
    y = "CV (%)"
  )
