The package implements the grid search algorithm with a zoom. The grid search algorithm with a zoom aims to help solving difficult optimization problem where there are many local optimisers inside the domain of the target function. It offers suitable initial or starting value for the following optimization procedure, provided that the global optimum exists in the neighbourhood of the initial or starting value. The grid search algorithm with a zoom saves time tremendously in cases with high-dimensional arguments.
You can also find the package on CRAN, see
and the corresponding paper
Modelling Nonlinear Vector Economic Time Series
See section 1.5.4.
You can either install the stable version from CRAN
install.packages("zoomgrid")or install the development version from GitHub
devtools::install_github("yukai-yang/zoomgrid")provided that the package “devtools” has been installed beforehand.
After installing the package, you need to load (attach better say) it by running the code
library(zoomgrid)You can take a look at all the available functions and data in the package
ls("package:zoomgrid")
#> [1] "build_grid" "grid_search" "grid_search_check"Consider the two-dimensional Rastrigin function, which is a non-convex function widely used for testing optimisation algorithms.
where xi ∈ [−5.12, 5.12] and A = 10. It has many local minima and its global minimum is at (0, 0) with the minimum value 0.

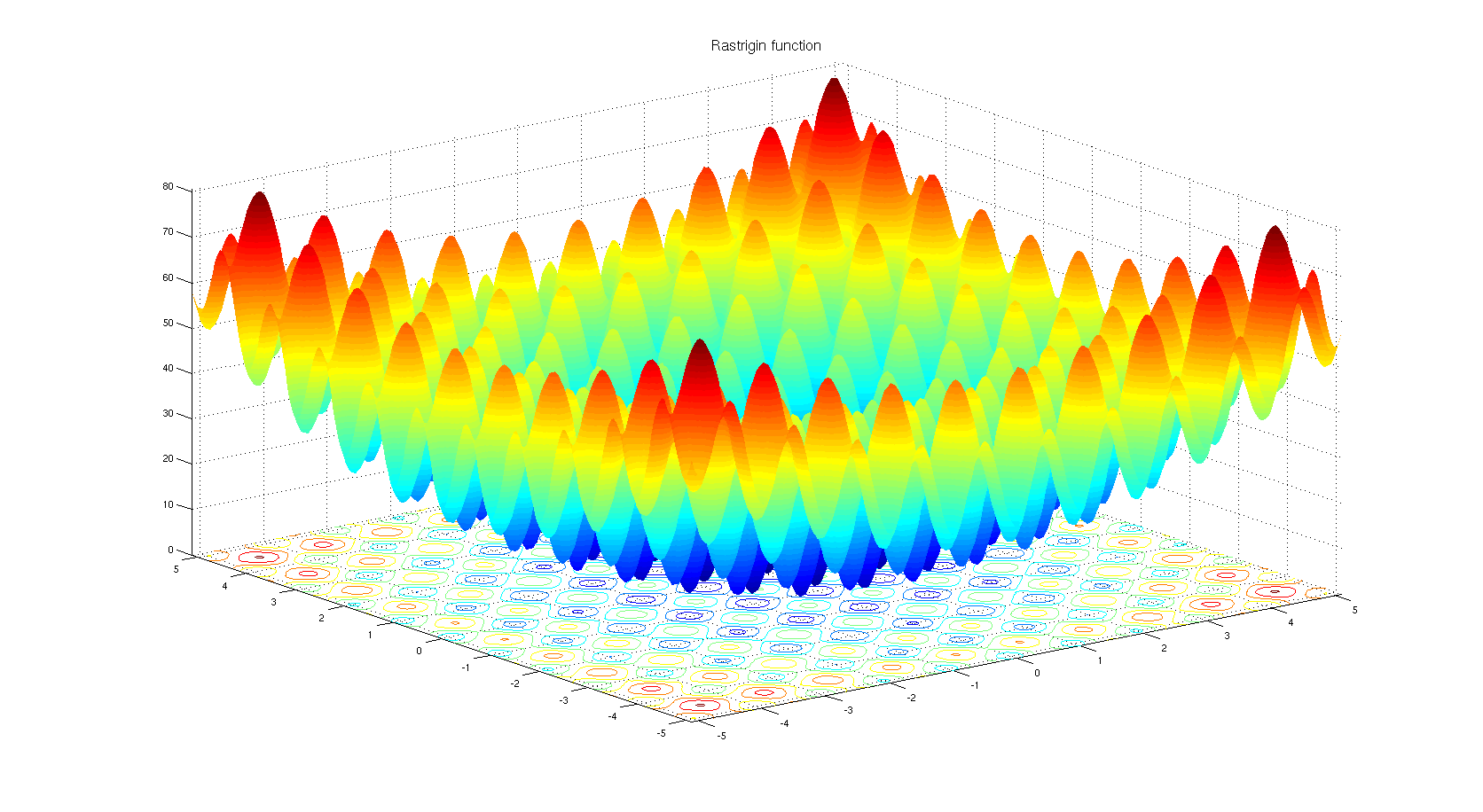

![Diegotorquemada [Public domain], from Wikimedia Commons](man/figures/Rastrigin_function.png)
Graph source: Rastrigin function @ WIKIPEDIA.
We give the function in R:
# Rastrigin function
ndim = 2 # number of dimension
nA = 10 # parameter A
# vx in [-5.12, 5.12]
# minimizer = rep(0, ndim)
# minimum = 0
Rastrigin <- function(vx) return(nA * ndim + sum(vx*vx - nA * cos(2*pi*vx)))Then let us try the optimization algorithms available in the
optim function.
# set seed and initialize the initial or starting value
set.seed(1)
par = runif(ndim, -5.12, 5.12)
cat("start from", par)
#> start from -2.401191 -1.309451
# results from different optimization algorithms
tmp1 = optim(par = par, Rastrigin, method='Nelder-Mead')
tmp2 = optim(par = par, Rastrigin, method='BFGS')
tmp3 = optim(par = par, Rastrigin, method='L-BFGS-B')
tmp4 = optim(par = par, Rastrigin, method='SANN')
tmp1$par; tmp1$value
#> [1] -1.9899136 -0.9949483
#> [1] 4.97479
tmp2$par; tmp2$value
#> [1] -0.9949586 0.9949586
#> [1] 1.989918
tmp3$par; tmp3$value
#> [1] -1.989912e+00 2.913342e-09
#> [1] 3.979831
tmp4$par; tmp4$value
#> [1] 0.97915333 0.01486102
#> [1] 1.088185None of them are satisfactory…
We need to build grid first for the grid search. For details, see
?build_gridWe build the grid by running
# build the grid
bin = c(from=-5.12, to=5.12, by=.1)
grid = build_grid(bin,bin)We can first try the sequential (no parallel) grid search
# serial computation
ret1 = grid_search(Rastrigin, grid, silent=FALSE)
#>
#> ── zoomgrid version 1.1.0 (Red Grid) ───────────────────────────────────────────
#> ✔ Grid search with 0 zoom-in layers and 1 point each produced 1 result.
#> The minimiser is believed to be in the neighbourhood of -0.0199999999999996 and
#> -0.0199999999999996.
#> ℹ Elapsed: 3.837s (user: 3.798s, system: 0.021s).
ret1$par
#> [1] -0.02 -0.02Then we run the parallel one. Parallel execution uses the future framework and works on all major platforms including Windows.
# parallel computation
ret2 = grid_search(Rastrigin, grid, num=2, parallel=TRUE, silent=FALSE)
#>
#> ── zoomgrid version 1.1.0 (Red Grid) ───────────────────────────────────────────
#> ℹ Parallel computation runs with 2 workers.
#> ✔ Grid search with 0 zoom-in layers and 2 points each produced 2 results.
#> The minimiser is believed to be in the neighbourhood of -0.0199999999999996 and
#> -0.0199999999999996.
#> ℹ Elapsed: 2.605s (user: 0.606s, system: 0.014s).
ret2$par
#> [1] -0.02 -0.02Try the grid search with a zoom!
# grid search with a zoom!
ret3 = grid_search(Rastrigin, grid, zoom=2, num=2, parallel=TRUE, silent=FALSE)
#>
#> ── zoomgrid version 1.1.0 (Red Grid) ───────────────────────────────────────────
#> ℹ Parallel computation runs with 2 workers.
#> ✔ Grid search with 2 zoom-in layers and 2 points each produced 14 results.
#> The minimiser is believed to be in the neighbourhood of 5.59049615653446e-05
#> and 5.59049615653446e-05.
#> ℹ Elapsed: 4.855s (user: 1.277s, system: 0.041s).
ret3$par
#> [1] 5.590496e-05 5.590496e-05Sometimes it is strongly recommended to check the time consumed by running the grid search first. This is extremely useful when the user is going to run on some super-computing server and need to know approximately how long it will take in order to specify the corresponding settings according to some batch system like SLURM for example. So you can do as follows
ret3 = grid_search_check(Rastrigin, grid, zoom=2, num=2, parallel=TRUE, silent=FALSE)
#>
#> ── zoomgrid version 1.1.0 (Red Grid) ───────────────────────────────────────────
#> ℹ Parallel computation runs with 2 workers.
#> ℹ The expected time consumed by running the grid search is around 4.61959 seconds.
ret3 = grid_search(Rastrigin, grid, zoom=2, num=2, parallel=TRUE, silent=FALSE)
#>
#> ── zoomgrid version 1.1.0 (Red Grid) ───────────────────────────────────────────
#> ℹ Parallel computation runs with 2 workers.
#> ✔ Grid search with 2 zoom-in layers and 2 points each produced 14 results.
#> The minimiser is believed to be in the neighbourhood of 5.59049615653446e-05
#> and 5.59049615653446e-05.
#> ℹ Elapsed: 4.935s (user: 1.317s, system: 0.042s).If you use the zoomgrid package in your research, please cite the underlying methodology.
Yang, Y. (2012). Modelling Nonlinear Vector Economic Time Series. PhD thesis, Aarhus University, Department of Economics and Business, CREATES. Available at: https://pure.au.dk/ws/files/428886102/Yukai_Yang_PhD_Thesis.pdf
You can obtain the citation information directly from R by running:
citation("zoomgrid")
#> To cite package 'zoomgrid' in publications use:
#>
#> Yang Y (2012). _Modelling Nonlinear Vector Economic Time Series_.
#> Ph.D. thesis, Aarhus University, Aarhus, Denmark. PhD thesis,
#> Department of Economics and Business, CREATES,
#> <https://pure.au.dk/ws/files/428886102/Yukai_Yang_PhD_Thesis.pdf>.
#>
#> A BibTeX entry for LaTeX users is
#>
#> @PhdThesis{,
#> title = {Modelling Nonlinear Vector Economic Time Series},
#> author = {Yukai Yang},
#> year = {2012},
#> school = {Aarhus University},
#> address = {Aarhus, Denmark},
#> note = {PhD thesis, Department of Economics and Business, CREATES},
#> url = {https://pure.au.dk/ws/files/428886102/Yukai_Yang_PhD_Thesis.pdf},
#> }
